httptap¶

httptap is a rich-powered CLI that dissects an HTTP request into every meaningful phase—DNS, TCP connect, TLS handshake, server wait, and body transfer—and renders the results as a timeline table, compact summary, or machine-friendly metrics. It is designed for interactive troubleshooting, regression analysis, and recording of performance baselines.

Special Offer

Save 50% on GitKraken Pro

Bundle GitKraken Client, GitLens for VS Code, and powerful CLI tools to accelerate every repo workflow.

Claim 50% Discount

Exclusive for httptap community

Highlights¶

• Phase-by-phase timing – precise measurements built from httpcore trace hooks (with sane fallbacks when metal-level data is unavailable)
• All HTTP methods – GET, POST, PUT, PATCH, DELETE, HEAD, OPTIONS with request body support
• Request body support – send JSON, XML, or any data inline or from file with automatic Content-Type detection
• IPv4/IPv6 aware – the resolver and TLS inspector report both the address and its family; -4/-6 restrict resolution to one family, and --resolve HOST:PORT:ADDR pins a host to an address while keeping the original Host header and TLS SNI
• TLS insights – certificate CN, SANs, issuer, serial, validity window and expiry countdown, plus cipher suite and protocol version, are captured automatically from the live connection (no extra handshake)
• Multiple output modes – rich waterfall view, compact single-line summaries, or --metrics-only for scripting
• JSON export – persist full step data (including redirect chains) for later processing, or stream it to stdout with --json -
• Prometheus and OpenTelemetry export – --prometheus PATH writes a node_exporter textfile; --otlp ENDPOINT sends per-phase spans to an OTLP/HTTP collector (requires httptap[otel])
• SLO threshold checking – --slo and --slo-file gate CI jobs, cron probes, and readiness checks on per-phase latency budgets
• Scriptable exit codes – -f/--fail exits 22 on HTTP 4xx/5xx responses, and SLO violations, network errors, and the redirect limit each have their own exit code
• Extensible – clean Protocol interfaces for DNS, TLS, timing, visualization, and export so you can plug in custom behavior

Quick Examples¶

GET request:

httptap https://httpbin.io/get

POST with JSON data:

httptap --data '{"name": "John"}' https://httpbin.io/post

Key Features¶

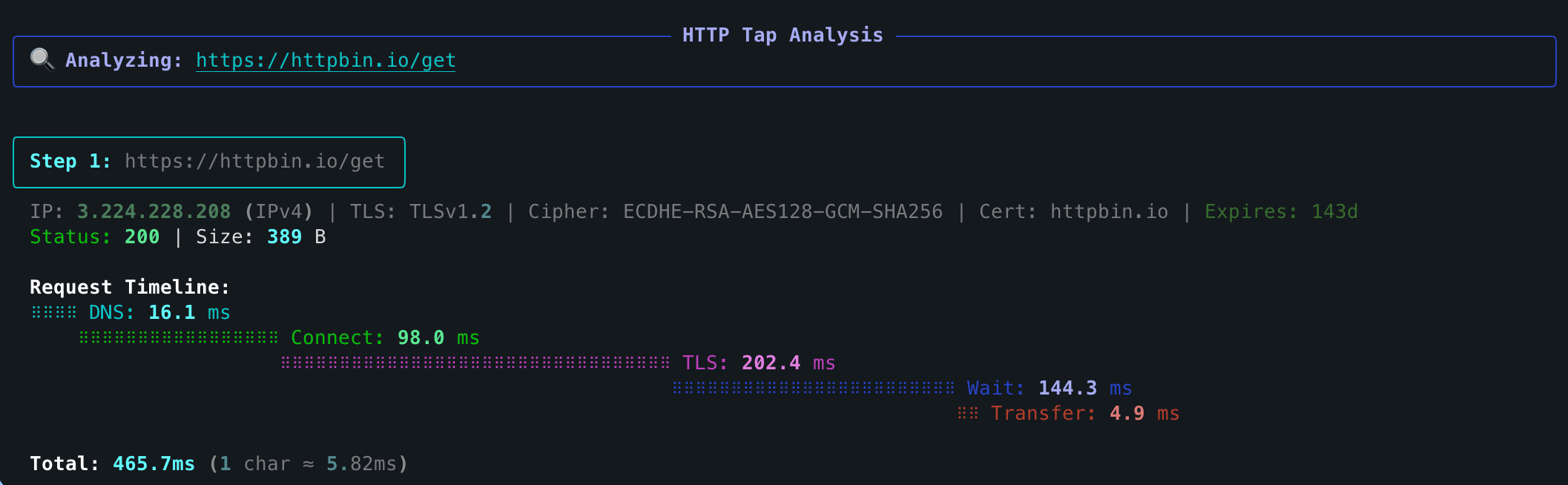

Rich Waterfall Visualization¶

View detailed timing breakdown for each phase of the HTTP request with a beautiful terminal UI powered by Rich.

Multiple Output Formats¶

• Rich mode (default): Beautiful waterfall table with colors and formatting
• Compact mode (--compact): Single-line summaries suitable for logs
• Metrics mode (--metrics-only): Raw metrics for scripting and automation
• JSON export (--json): Full request data including redirect chains, to a file or to stdout with --json -
• Prometheus textfile (--prometheus): Per-phase gauges for the node_exporter textfile collector
• OpenTelemetry traces (--otlp): One span per request with child spans per phase, sent to an OTLP/HTTP collector

Advanced Network Insights¶

• DNS resolution timing with IP family detection (IPv4/IPv6)
• TCP connection establishment timing
• TLS handshake analysis with certificate information
• Time to first byte (TTFB) measurement
• Response body transfer timing

Redirect Chain Support¶

Follow HTTP redirects and see timing breakdown for each step in the chain with --follow flag.

What's Next?¶

Requirements¶

• Python 3.11-3.15
• macOS, Linux, or Windows
• No system dependencies beyond standard networking
